Spreading back unit

Divers

We propose spreading back units with 2 or 4 beaters and different center distances. Diameter of the tube, number of flight, their thickness and the material can be defined depending of your needs.





> Technical drawing to complete for quotation

Their dimensions:

  • Range: EH (150 hp), EHS (200 hp), EHSR (250 hp), EHX (400 hp)
  • PTO: 540 RPM or 1000 RPM
  • Center distance: 550 mm to 1100 mm
  • Ratio: 1/1 to 1/2.82
  • Input shaft: 1″3/8 (6), 1″3/4 (6), 1″3/4 (20)
  • Output shaft: 1″3/8 (6), 1″3/4 (6), Ø45, Ø45 (16), Ø55 (20), Ø80 (30)
EH169 Ensemble hérissons

EH169 Spreading back unit

Center distance 550 mm, weidth 1258 mm

> Product information sheet
EH208 Ensemble hérissons

EH208 Spreading back unit

Center distance 670 mm, weidth 1500 mm

> Product information sheet
EH670 Ensemble hérissons

EH670 Spreading back unit

Center distance 670 mm, weidth 1500 mm

> Product information sheet
EH780 Ensemble hérissons

EH780 Spreading back unit

Center distance 780 mm, weidth 1710 mm

> Product information sheet
EH930 Ensemble hérissons

EH930 Spreading back unit

Center distance 930 mm, weidth 2000 mm

> Product information sheet

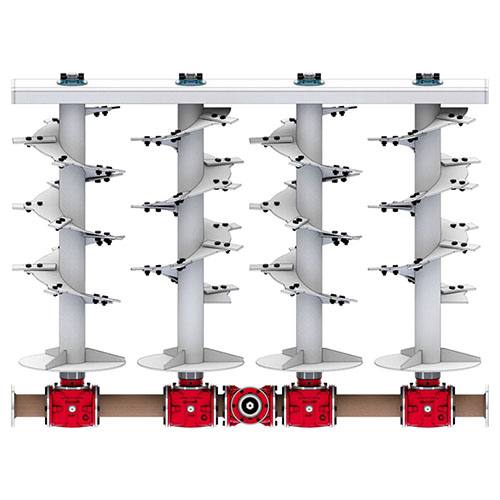

EH1566 Ensemble hérissons

EH1566 Spreading back unit

Center distance 522 mm, weidth 2100 mm

> Product information sheet
